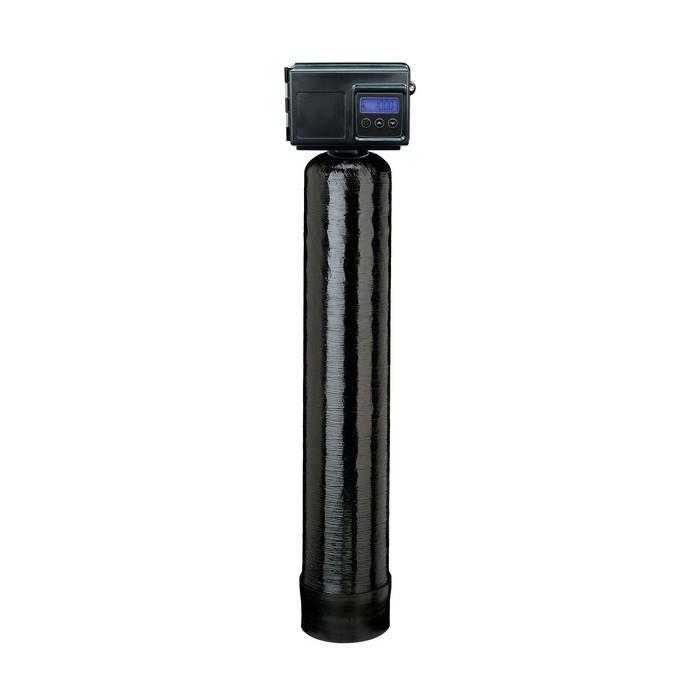

Iron and Sulfur Filter – AIO
The AIO (air injection oxidization) is a chemical free process that it’s intended to be an effective and economical way to remove iron from water without the use of messy and dangerous chemicals. The control valve uses a patented construction to create an air bubble at the upper portion of the tank to oxidize any ferrous iron prior to being filtered by the media. It can also be used to remove low concentrations of dissolved hydrogen sulfide and manganese from water.
The Features of the Iron Filter:
● 2510AIO Valve with SXT Control
● User-friendly Electronics and Simple Serviceability
● Adjustable Cycles
● Day Override
● Bypass Valve
● Inlet Check Valve
The Iron Filter Process:
This filter works by adding oxygen to the incoming water by passing it through a bubble of compressed air. The water is then passed through a special filter bed. The special media not only increases the pH of the water to enhance iron removal but also acts as a physical barrier to trap iron precipitate. As more water passes through this iron filter, the oxygen in the unit is used up, and the media gets loaded with iron. The regeneration process then begins in order to replenish the supply of oxygen, and to backwash the precipitated iron trapped in the media bed.
